SANITARY WARE & PLUMBING

104-TPT

104-TPT rimless toiletDesigns for reference only. Final order prevails.

Rimless Flushing Toilet

A rimless flushing toilet with a P-trap outlet. Refer to the dimension drawing below for dimensions and installation positions.

Model104-TPT
Product typeRimless flushing toilet
Dimensions (L × W × H)670 × 390 × 835 mm
OutletP-trap
Roughing-in180 mm

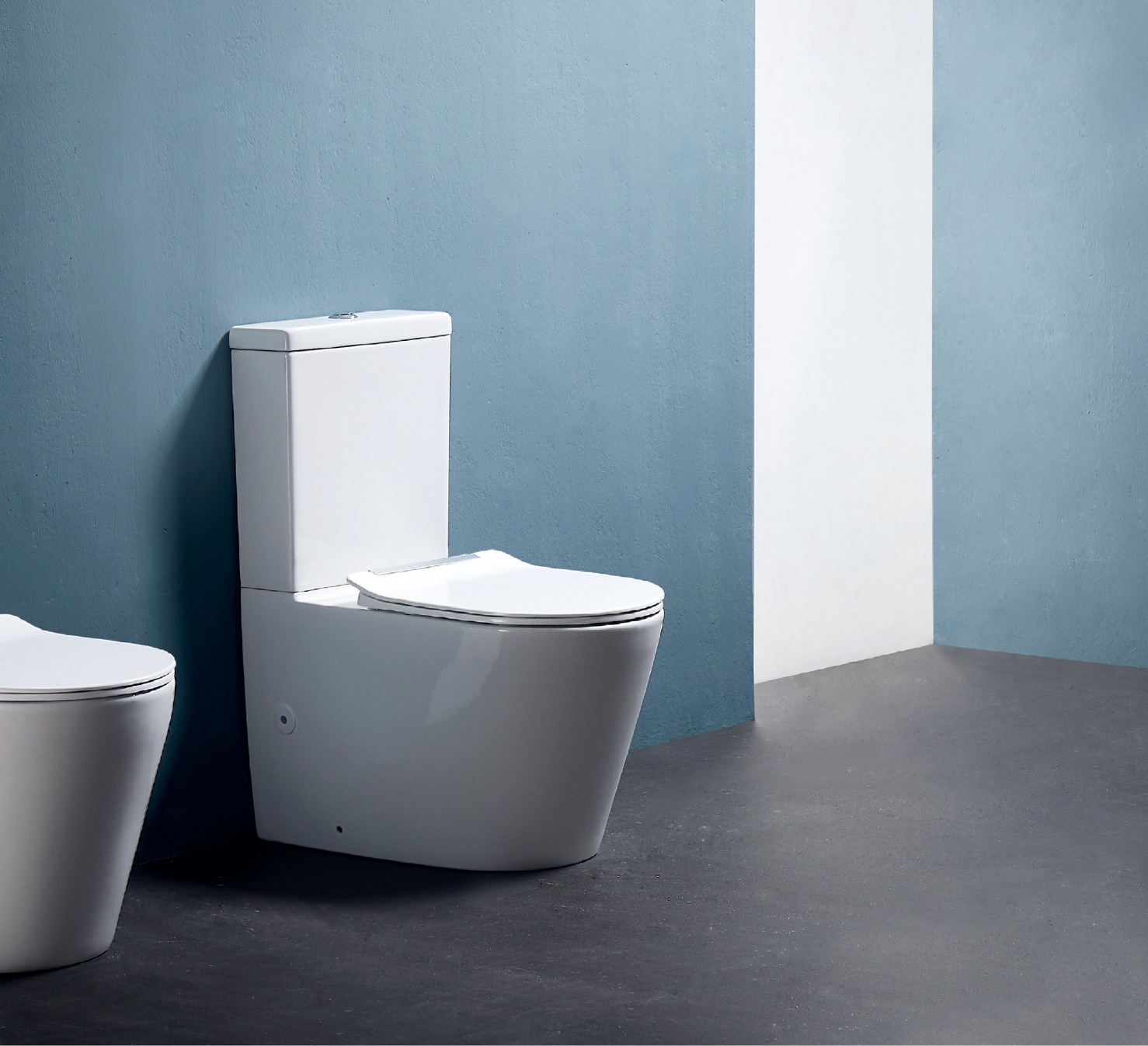

104-TPT bathroom applicationDesigns for reference only. Final order prevails.
Product application

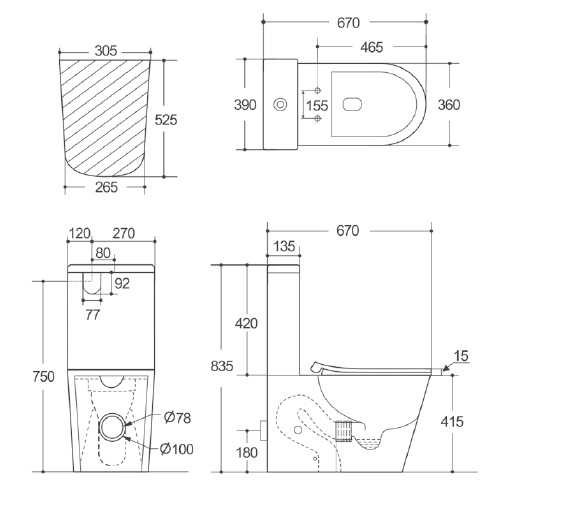

104-TPT dimension drawing
Dimension drawing (mm)
