Sealed Louvred Pergolas

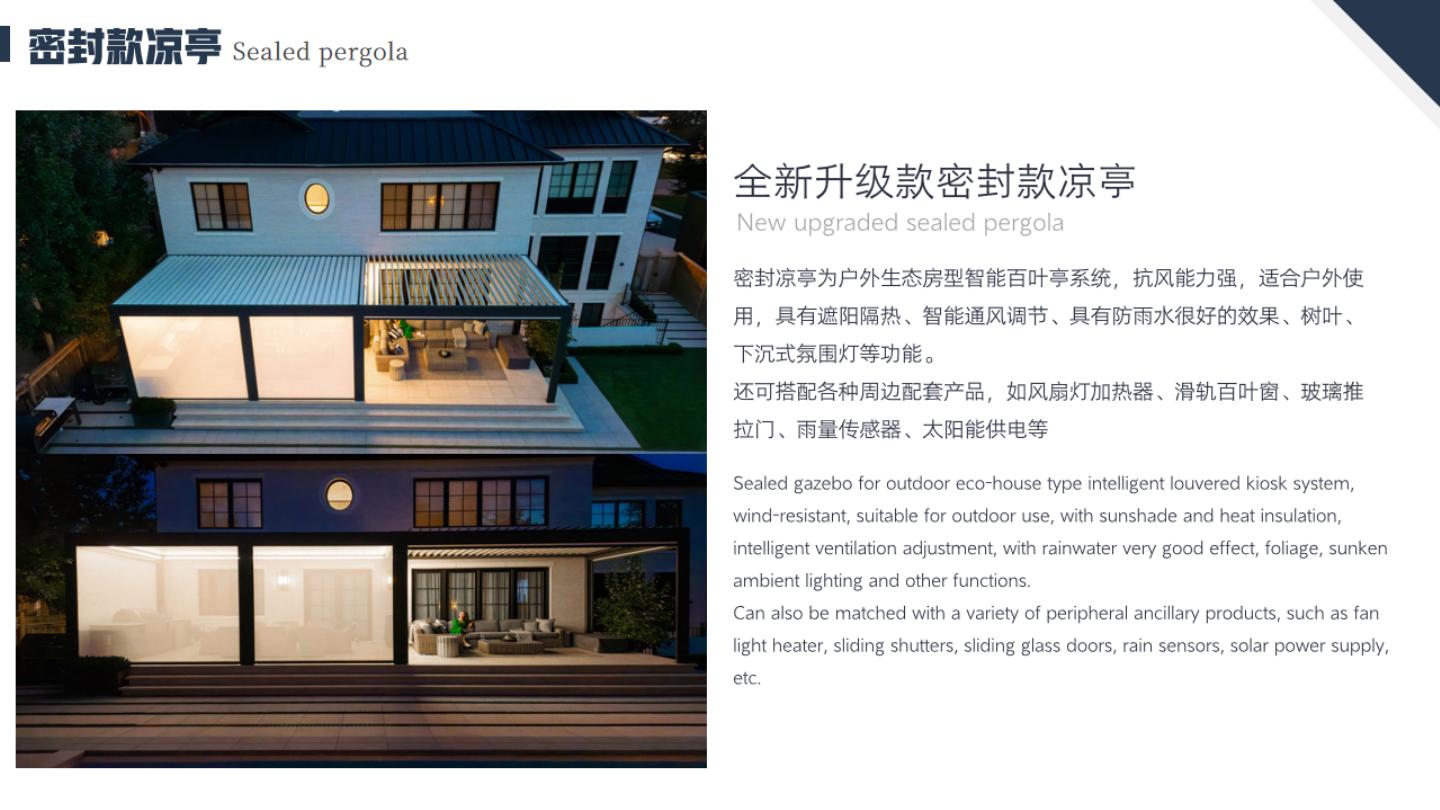

A rotating louvred roof with integrated drainage and options for a more enclosed outdoor setting.
Select an open-air setting for daylight and ventilation, or close the louvers for shade and rain management. Side enclosures, lighting and accessories can be coordinated as part of the overall design.
Product details
| Louvre rotation | 0–110°, as shown in the brochure. |
|---|---|
| Louvre section | Height 40 mm; wall thickness 2.5 mm. Width is printed as “210m” in the brochure and requires confirmation. |
| Beam section | Height 240 mm; wall thickness 2.5 mm. Width is printed as “135m” and requires confirmation. |
| Post section | 160 × 160 mm; wall thickness 2.5 mm. |
| Drainage | Louvre channels direct rainwater to perimeter gutters and concealed post drainage. |
| Lighting | Ambient LED strips and spotlights; configuration to be selected. |
| Project dimensions | Span, total size, module layout, motor and fixing details to be confirmed for the project; not specified in this brochure. |

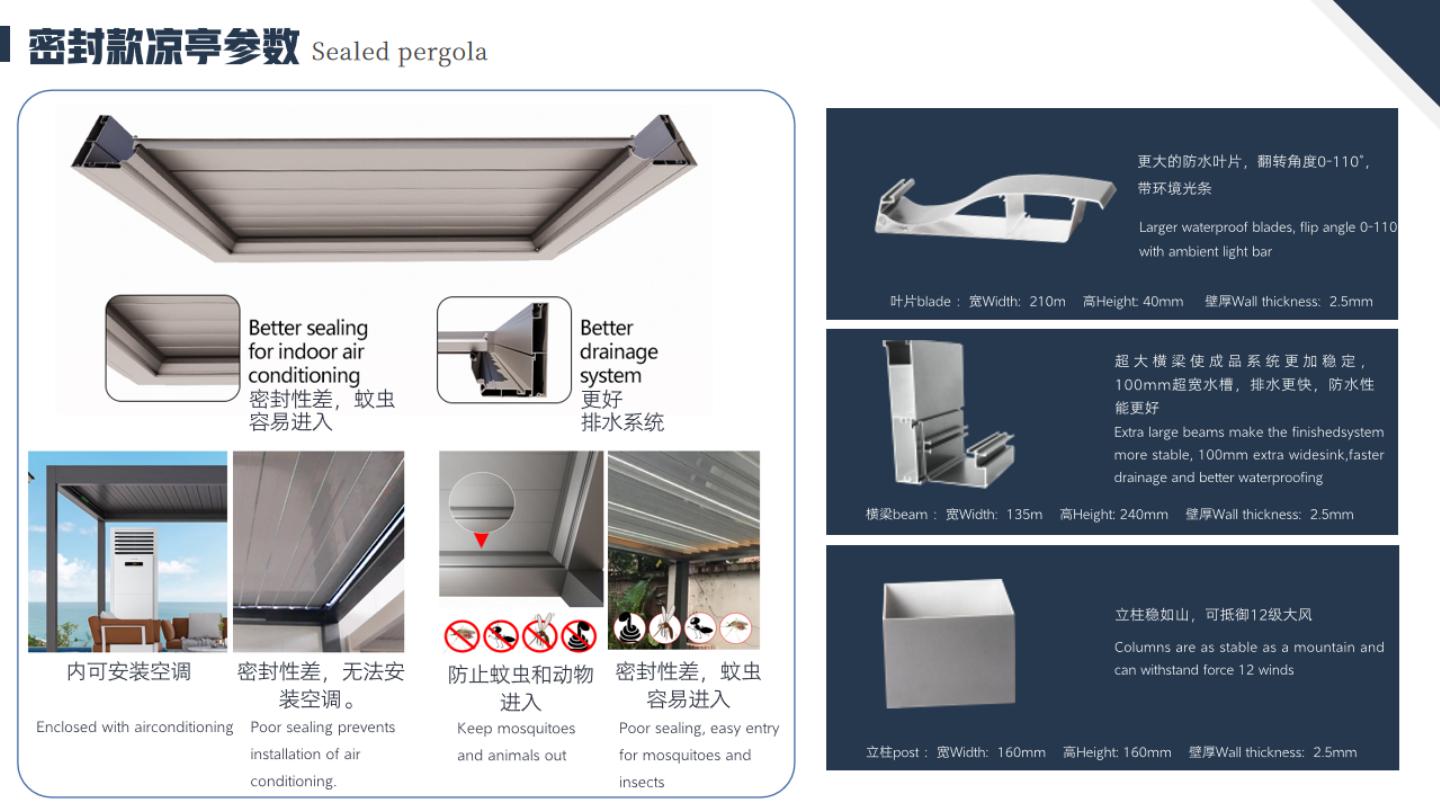

Product & section drawings
Brochure dimensions are reference values. Wind, snow, watertightness and enclosure performance depend on the complete configuration, site and supporting documentation.
