ARCHITECTURAL HARDWARE

Locks & Operating Mechanisms

Multipoint locks, lock cases, cylinders, operating mechanisms and keeps.

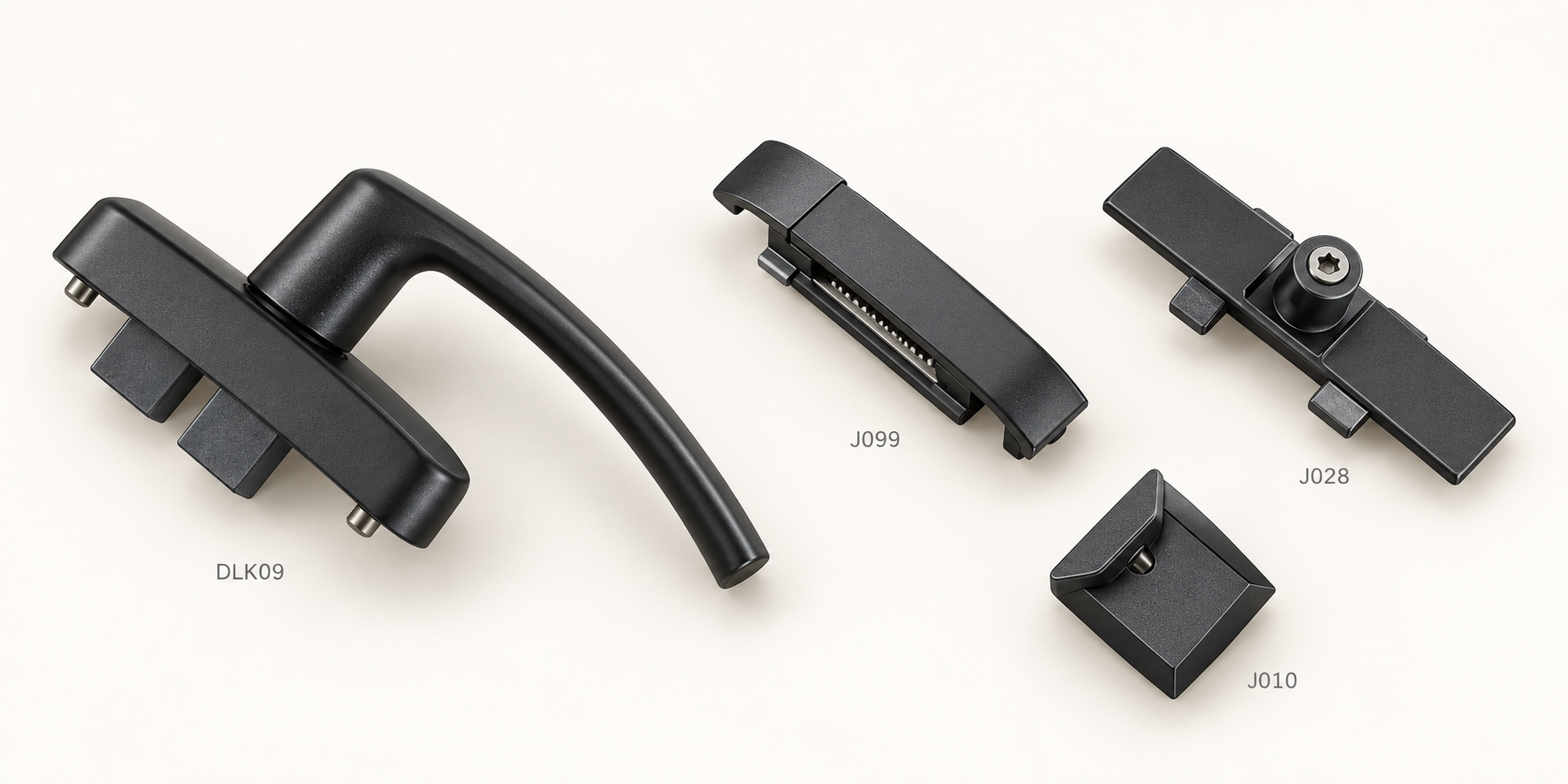

Multipoint Locking System for Euro-Groove Inward-Opening Casement Windows

Illustrated components include the DLK09 handle, J099 bidirectional transmission, J028 locking points and J010 keeps. Select components to suit the window and profile.

Black multipoint locking hardware: DLK09, J099, J028 and J010 — Illustration for reference. Final product prevails.

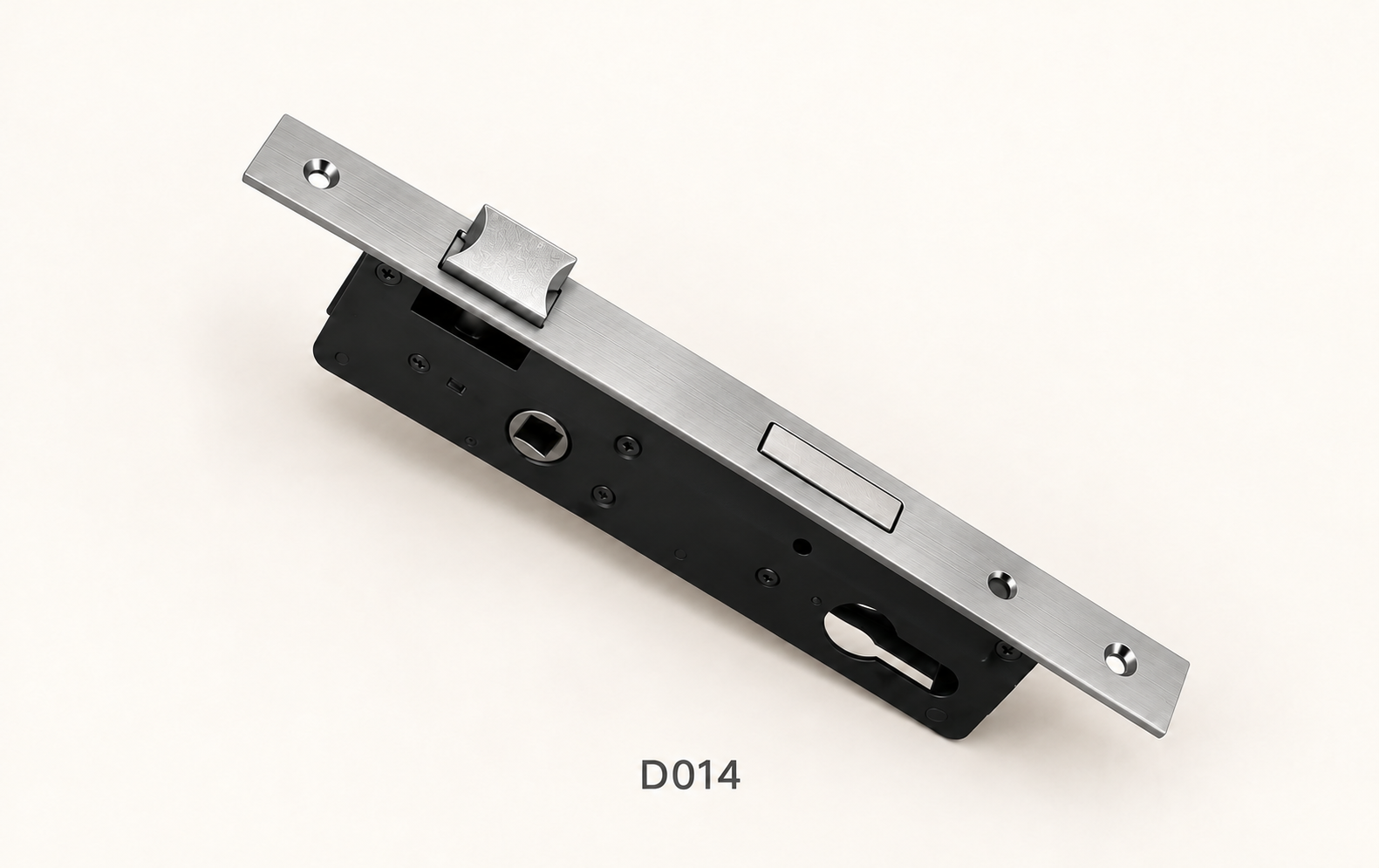

D014 Mortise Lock Case

For compatible hinged door systems. A black lock case with a stainless-steel-coloured faceplate and latch bolts. Confirm dimensions and matching handles and cylinders for the door and profile.

D014 black mortise lock case with stainless steel coloured faceplate and bolts — Illustration for reference. Final product prevails.

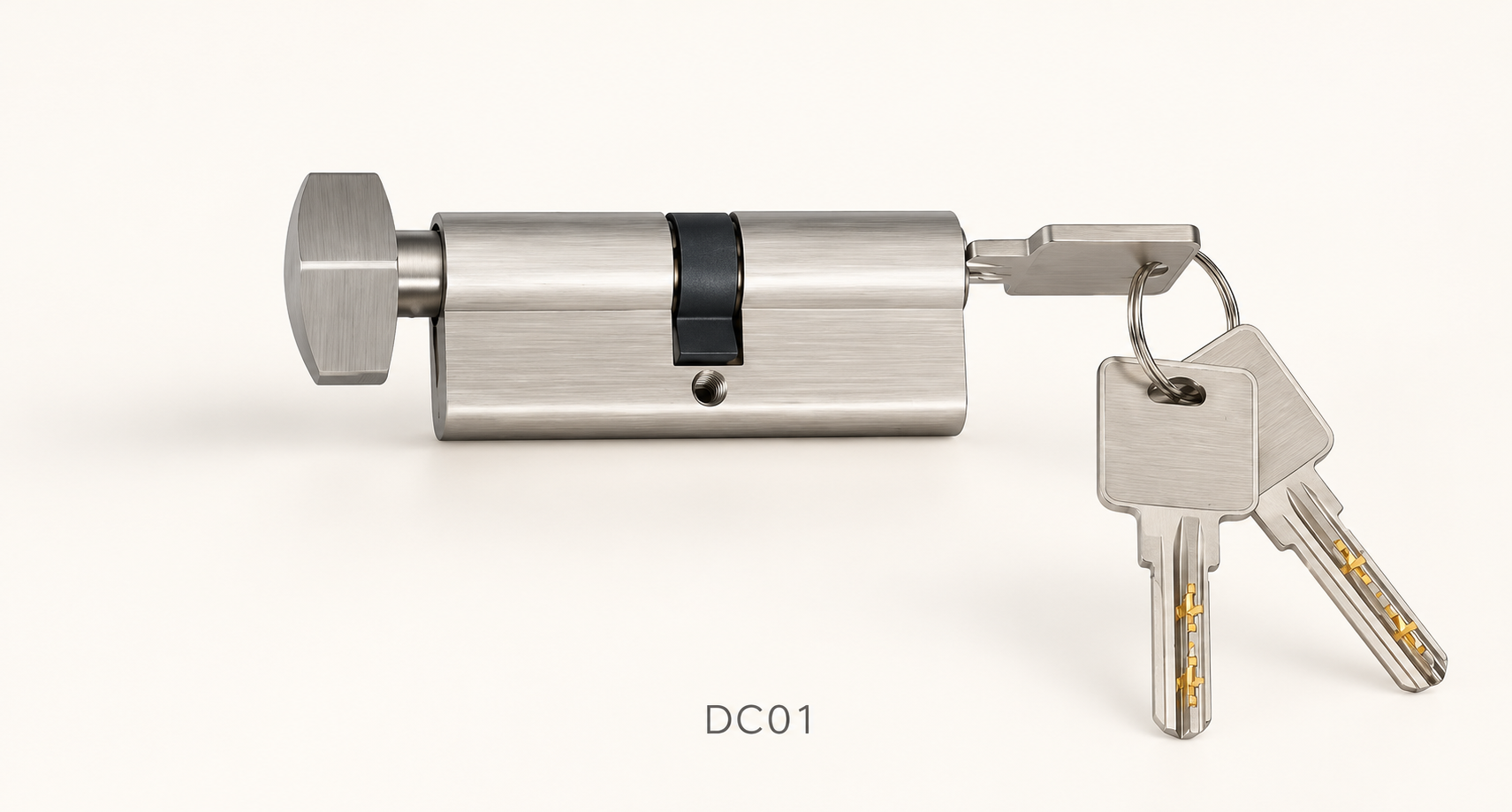

DC01 Key / Thumbturn Euro Cylinder

Key operation on one side and thumbturn operation on the other. Select the cylinder length and side dimensions to suit the door thickness, handles and installation.

DC01 silver euro cylinder with thumbturn and keys — Illustration for reference. Final product prevails.

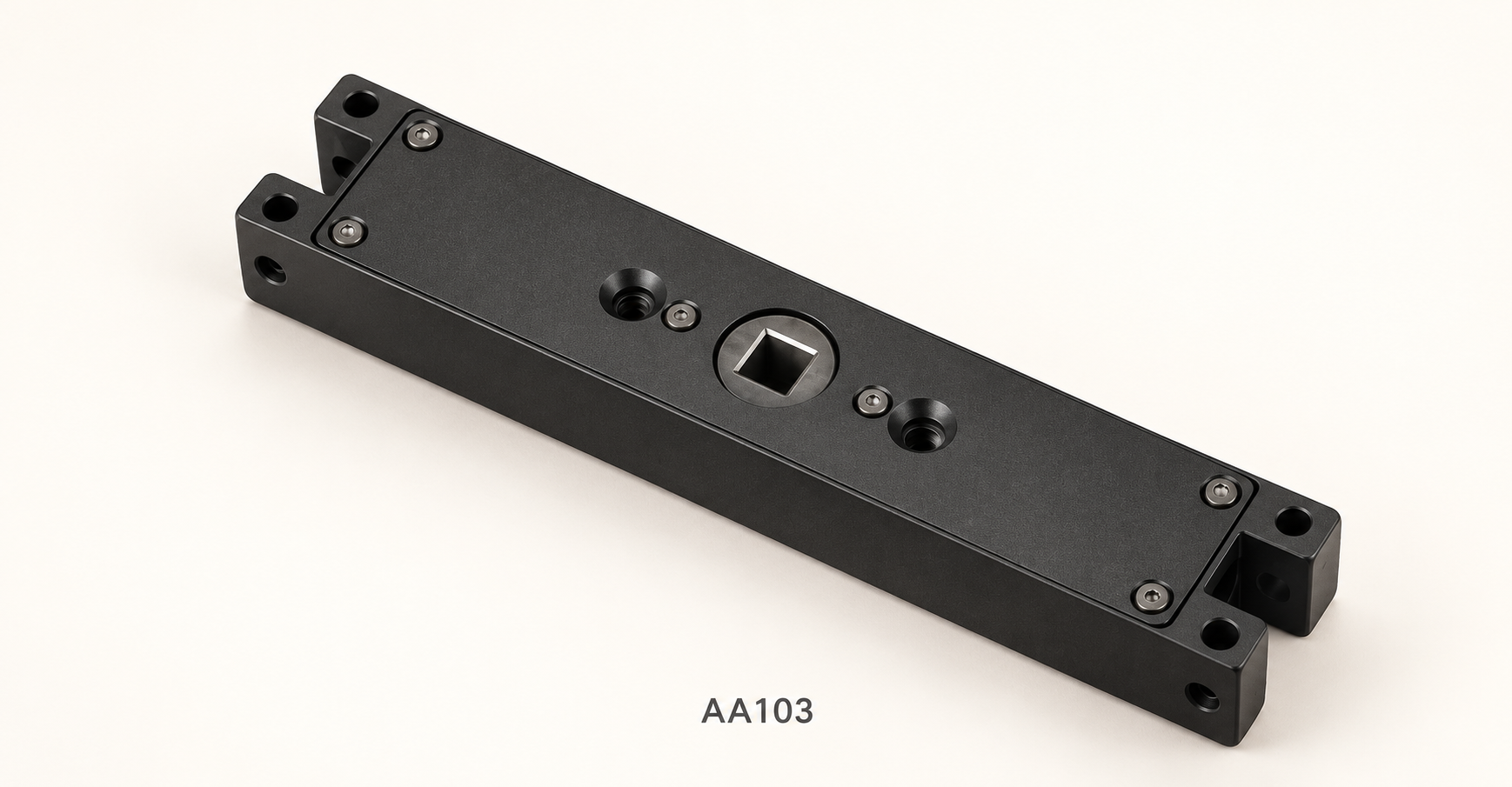

AA103 Bidirectional Transmission Gearbox

For compatible window and door locking transmission systems. Confirm fixing dimensions, spindle and connections for the profile and matching hardware.

AA103 black bidirectional transmission gearbox — Illustration for reference. Final product prevails.

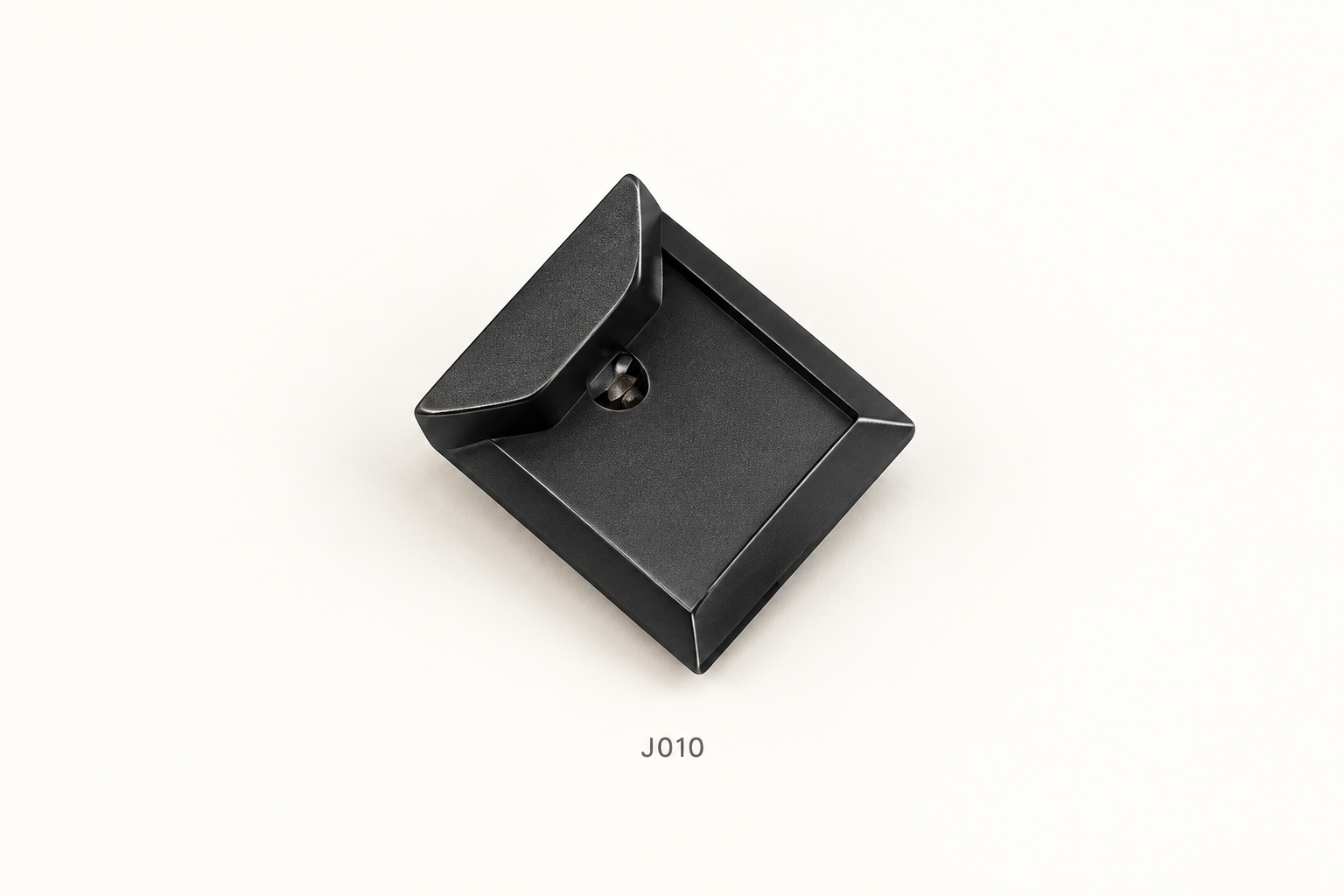

J010 Lock Keep

For use with compatible multipoint locking points. Confirm fixing position, dimensions and installation for the profile and matching locking system.

J010 black lock keep — Illustration for reference. Final product prevails.
