Australian Crank Window Operators

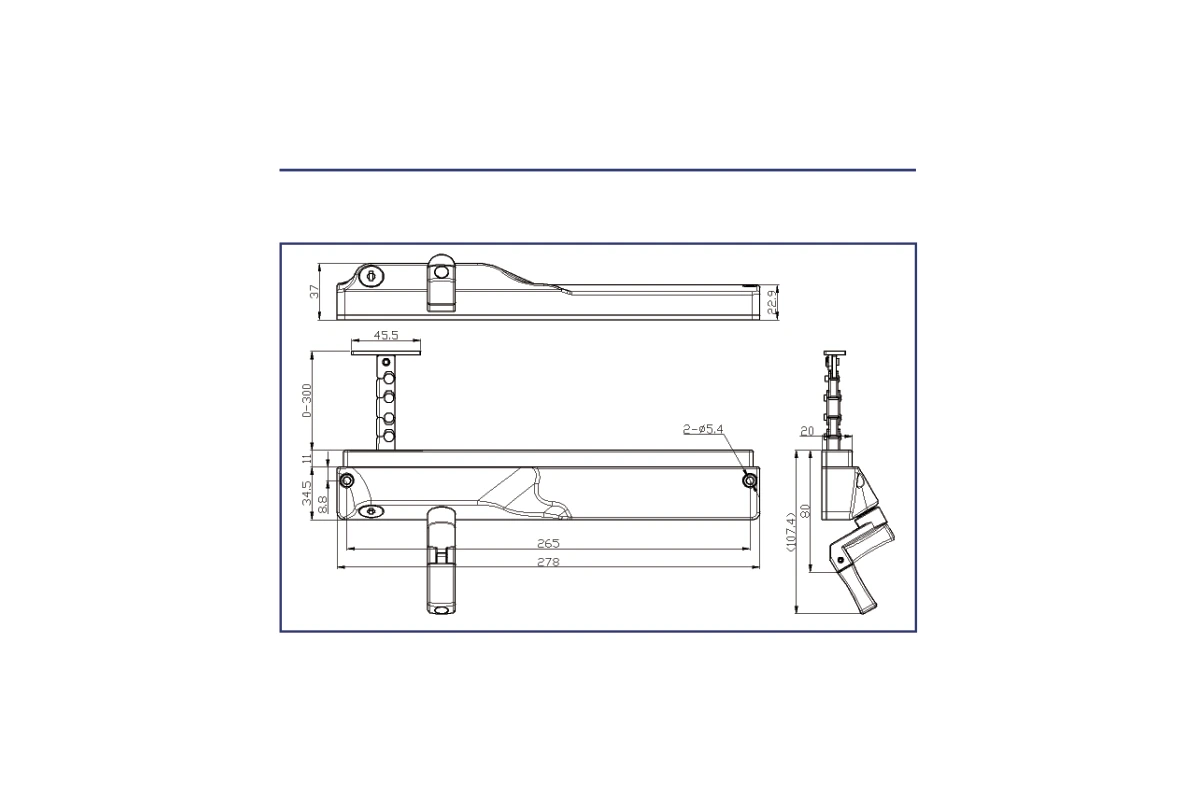

CW 16601

Single Chainwinder

For aluminium and timber awning windows.

Fold-down handle and knob help reduce interference with blinds.
Visible or concealed versions; optional 120 mm opening restriction.
Aluminium alloy housing and stainless steel chain; black, white and silver finishes.

Manufacturer recommended sash limits: 2000 mm high × 900 mm wide; 70 kg.

For sashes below 800 mm high and above 45 kg, a chain stroke of no more than 120 mm is recommended. Confirm suitability for the sash configuration.

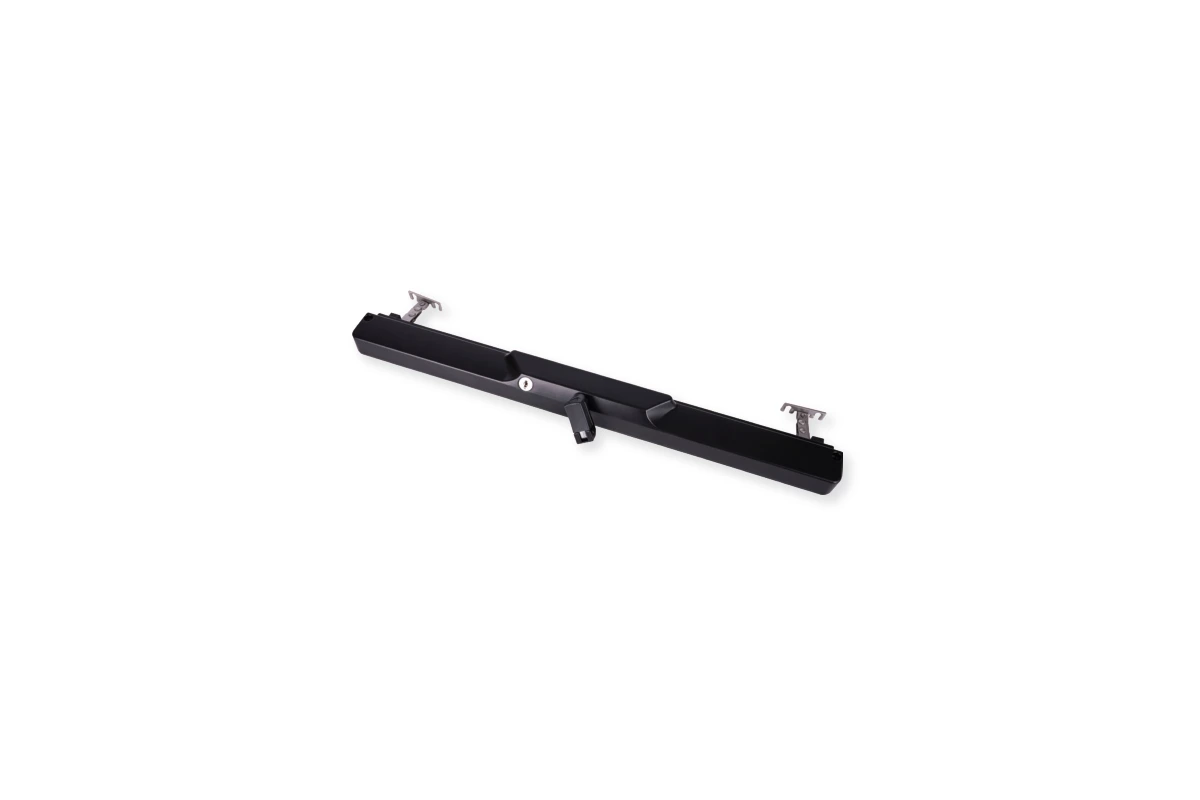

Twin Chainwinder

Twin-chain operation for wider or heavier aluminium and timber awning sashes.

Fold-down handle and knob help reduce interference with blinds.
Visible or concealed versions; optional 120 mm opening restriction.
Aluminium alloy housing and stainless steel chain; black, white and silver finishes.

Manufacturer recommended sash limits: 2000 mm high × 1800 mm wide; 70 kg.

For sashes below 800 mm high and above 50 kg, a chain stroke of no more than 120 mm is recommended. Confirm suitability for the sash configuration.
